A15 Series 15 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 200Vdc
  • High Power Density
  • Ultra Wide Input Range
  • Excellent Line & Load Regulation
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection

The A15 Series high voltage DC/DC converter offers a highly regulated high voltage isolated output in a six-sided metal case.  Their small size, wide input, and excellent regulation make them ideally suited for applications that demand a high degree of performance.  All models will tolerate a short circuit indefinitely.


Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +70 Deg C
Temp. (Storage): -40 to +125 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet UL 60950

* * For RoHS Compliant part, add suffix /Y


Input Ranges: 9-36Vdc, 20-60Vdc, 36-72Vdc
Voltage Accuracy: 1%
Line Regulation: 0.1%
Load Regulation: 0.2%
Output Ripple: 0.4%
Input Filter: Low ESR Cap
Efficiency: 87%
Short Circuit Protection: Continuous
Switching Frequency: 130 kHz
Isolation: 1 kVdc

Dimensions: 1 x 2 x 0.41 [INCHES]
Weight: 1.2 Oz
Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
24.0 Vdc625 mA 9.0-36.0 Vdc88%15.0W
A15-24
A15-24/Y
24.0 Vdc625 mA 20.0-60.0 Vdc87%15.0W
A15-24/B
A15-24/B/Y
24.0 Vdc625 mA 36.0-72.0 Vdc87%15.0W
A15-24/C
A15-24/C/Y
28.0 Vdc535.7 mA 9.0-36.0 Vdc87%15.0W
A15-28
A15-28/Y
48.0 Vdc312 mA 9.0-36.0 Vdc89%15.0W
A15-48
A15-48/Y
48.0 Vdc312 mA 20.0-60.0 Vdc87%15.0W
A15-48/B
A15-48/B/Y
48.0 Vdc312 mA 36.0-72.0 Vdc87%15.0W
A15-48/C
A15-48/C/Y
54.0 Vdc277.7 mA 20.0-60.0 Vdc87%15.0W
A15-54/B
A15-54/B/Y
56.0 Vdc267.9 mA 9.0-36.0 Vdc89%15.0W
A15-56
A15-56/Y
59.0 Vdc254.2 mA 9.0-36.0 Vdc89%15.0W
A15-59
A15-59/Y
60.0 Vdc250 mA 9.0-36.0 Vdc89%15.0W
A15-60
A15-60/Y
60.0 Vdc250 mA 20.0-60.0 Vdc87%15.0W
A15-60/B
A15-60/B/Y
65.0 Vdc230.8 mA 9.0-36.0 Vdc87%15.0W
A15-65
A15-65/Y
68.0 Vdc220.6 mA 9.0-36.0 Vdc87%15.0W
A15-68
A15-68/Y
80.0 Vdc187.5 mA 20.0-60.0 Vdc87%15.0W
A15-80/B
A15-80/B/Y
95.0 Vdc157.9 mA 20.0-60.0 Vdc87%15.0W
A15-95/B
A15-95/B/Y
100.0 Vdc150 mA 9.0-36.0 Vdc87%15.0W
A15-100
A15-100/Y
100.0 Vdc150 mA 20.0-60.0 Vdc87%15.0W
A15-100/B
A15-100/B/Y
100.0 Vdc150 mA 36.0-72.0 Vdc87%15.0W
A15-100/C
A15-100/C/Y
120.0 Vdc125 mA 9.0-36.0 Vdc89%15.0W
A15-120
A15-120/Y
120.0 Vdc125 mA 20.0-60.0 Vdc87%15.0W
A15-120/B
A15-120/B/Y
120.0 Vdc125 mA 36.0-72.0 Vdc87%15.0W
A15-120/C
A15-120/C/Y
140.0 Vdc107 mA 9.0-36.0 Vdc89%15.0W
A15-140
A15-140/Y
140.0 Vdc107 mA 20.0-60.0 Vdc87%15.0W
A15-140/B
A15-140/B/Y
140.0 Vdc107 mA 36.0-72.0 Vdc87%15.0W
A15-140/C
A15-140/C/Y
150.0 Vdc100 mA 9.0-36.0 Vdc89%15.0W
A15-150
A15-150/Y
150.0 Vdc100 mA 20.0-60.0 Vdc92%15.0W
A15-150/B
A15-150/B/Y
150.0 Vdc100 mA 36.0-72.0 Vdc87%15.0W
A15-150/C
A15-150/C/Y
160.0 Vdc93.7 mA 9.0-36.0 Vdc92%15.0W
A15-160
A15-160/Y
160.0 Vdc93.7 mA 20.0-60.0 Vdc87%15.0W
A15-160/B
A15-160/B/Y
160.0 Vdc93.7 mA 36.0-72.0 Vdc87%15.0W
A15-160/C
A15-160/C/Y
180.0 Vdc83.3 mA 9.0-36.0 Vdc90%15.0W
A15-180
A15-180/Y
180.0 Vdc83.3 mA 20.0-60.0 Vdc87%15.0W
A15-180/B
A15-180/B/Y
180.0 Vdc83.3 mA 36.0-72.0 Vdc87%15.0W
A15-180/C
A15-180/C/Y
200.0 Vdc75 mA 9.0-36.0 Vdc88%15.0W
A15-200
A15-200/Y
200.0 Vdc75 mA 20.0-60.0 Vdc87%15.0W
A15-200/B
A15-200/B/Y
200.0 Vdc75 mA 36.0-72.0 Vdc90%15.0W
A15-200/C
A15-200/C/Y



Full Product Specification
PDF format

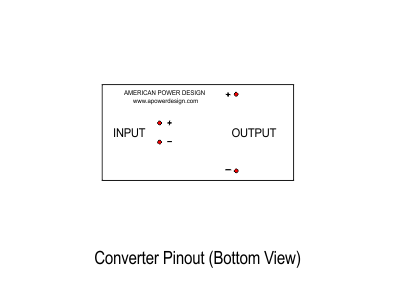

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
