E3 Series 3 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Fully Regulated Outputs to + or -8000Vdc
  • 0-100% Programable Outputs
  • High Stability (0.005%/Deg C
  • Low Output Noise & EMI/RFI
  • External Calibration Adjustment
  • Continuous Short Circuit Protection

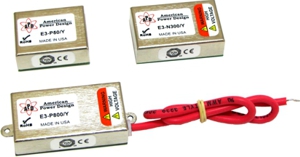

The E3 Series miniature regulated high voltage DC/DC converter offers a 100% programable high voltage output using a 0-5Vdc analog signal. Their small size, low output ripple, and excellent regulation make them ideally suited for applications that demand a high degree of performance. All models will tolerate a short circuit indefinitely.


Temp. (Stability): 0.005%/Deg C
Temp. (Operating Case): -10 to +60 Deg C
Temp. (Storage): -40 to +125 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet UL 60950

* * For RoHS Compliant part, add suffix /Y


Input Ranges: 11.5V-16Vdc
Voltage Accuracy: 1% / 1%
Line Regulation: 0.05%
Load Regulation: 0.1%
Output Ripple: 0.005% P-P
Input Filter: Low ESR Cap
Efficiency: 65%
Short Circuit Protection: Continuous
Switching Frequency: 180k-250kHz
Isolation: None

Dimensions: Case Size Varies
Weight: Weight Varies
Case Material: Nickle Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
-8000.0 Vdc0.375 mA 11.5-16.0 Vdc59%3.0W
E3-N800
E3-N800/Y
-6000.0 Vdc0.5 mA 11.5-16.0 Vdc59%3.0W
E3-N600
E3-N600/Y
-5000.0 Vdc0.6 mA 11.5-16.0 Vdc59%3.0W
E3-N500
E3-N500/Y
-4000.0 Vdc0.75 mA 11.5-16.0 Vdc60%3.0W
E3-N400
E3-N400/Y
-3000.0 Vdc1 mA 11.5-16.0 Vdc60%3.0W
E3-N300
E3-N300/Y
-2500.0 Vdc1.2 mA 11.5-16.0 Vdc60%3.0W
E3-N250
E3-N250/Y
-2000.0 Vdc1.5 mA 11.5-16.0 Vdc62%3.0W
E3-N200
E3-N200/Y
-1500.0 Vdc2 mA 11.5-16.0 Vdc62%3.0W
E3-N150
E3-N150/Y
-1250.0 Vdc2.4 mA 11.5-16.0 Vdc62%3.0W
E3-N125
E3-N125/Y
-1000.0 Vdc3 mA 11.5-16.0 Vdc63%3.0W
E3-N100
E3-N100/Y
-600.0 Vdc5 mA 11.5-16.0 Vdc63%3.0W
E3-N60
E3-N60/Y
-500.0 Vdc6 mA 11.5-16.0 Vdc65%3.0W
E3-N50
E3-N50/Y
-300.0 Vdc9.9 mA 11.5-16.0 Vdc65%3.0W
E3-N30
E3-N30/Y
-200.0 Vdc15 mA 11.5-16.0 Vdc65%3.0W
E3-N20
E3-N20/Y
-100.0 Vdc30 mA 11.5-16.0 Vdc65%3.0W
E3-N10
E3-N10/Y
100.0 Vdc30 mA 11.5-16.0 Vdc65%3.0W
E3-P10
E3-P10/Y
200.0 Vdc15 mA 11.5-16.0 Vdc65%3.0W
E3-P20
E3-P20/Y
300.0 Vdc9.9 mA 11.5-16.0 Vdc65%3.0W
E3-P30
E3-P30/Y
500.0 Vdc6 mA 11.5-16.0 Vdc65%3.0W
E3-P50
E3-P50/Y
600.0 Vdc5 mA 11.5-16.0 Vdc63%3.0W
E3-P60
E3-P60/Y
1000.0 Vdc3 mA 11.5-16.0 Vdc63%3.0W
E3-P100
E3-P100/Y
1250.0 Vdc2.4 mA 11.5-16.0 Vdc63%3.0W
E3-P125
E3-P125/Y
1500.0 Vdc2 mA 11.5-16.0 Vdc63%3.0W
E3-P150
E3-P150/Y
2000.0 Vdc1.5 mA 11.5-16.0 Vdc63%3.0W
E3-P200
E3-P200/Y
2500.0 Vdc1.2 mA 11.5-16.0 Vdc60%3.0W
E3-P250
E3-P250/Y
3000.0 Vdc1 mA 11.5-16.0 Vdc60%3.0W
E3-P300
E3-P300/Y
4000.0 Vdc0.75 mA 11.5-16.0 Vdc60%3.0W
E3-P400
E3-P400/Y
5000.0 Vdc0.6 mA 11.5-16.0 Vdc59%3.0W
E3-P500
E3-P500/Y
6000.0 Vdc0.5 mA 11.5-16.0 Vdc59%3.0W
E3-P600
E3-P600/Y
8000.0 Vdc0.375 mA 11.5-16.0 Vdc59%3.0W
E3-P800
E3-P800/Y



Full Product Specification
PDF format

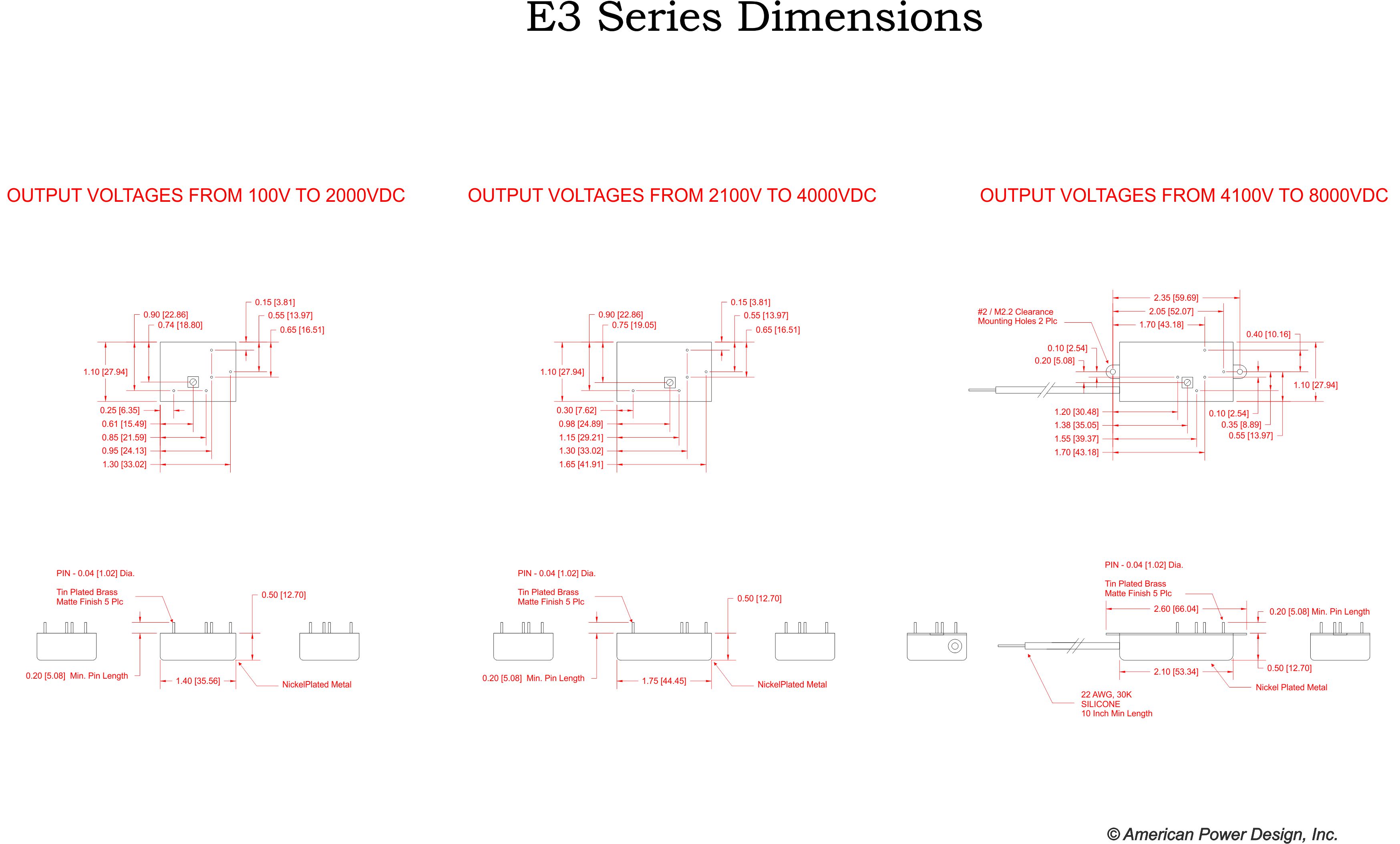

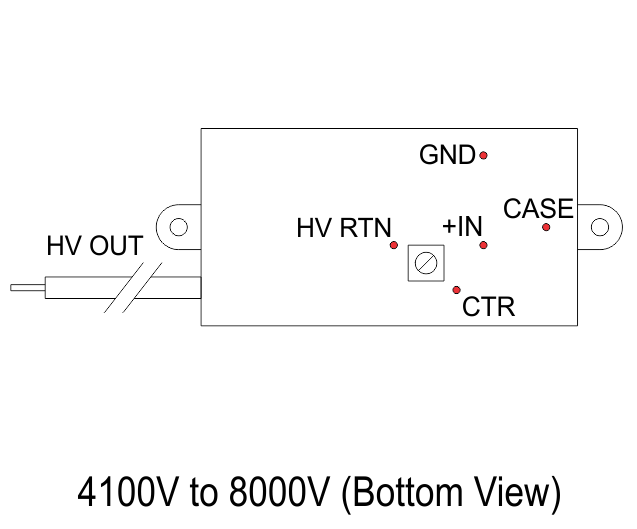

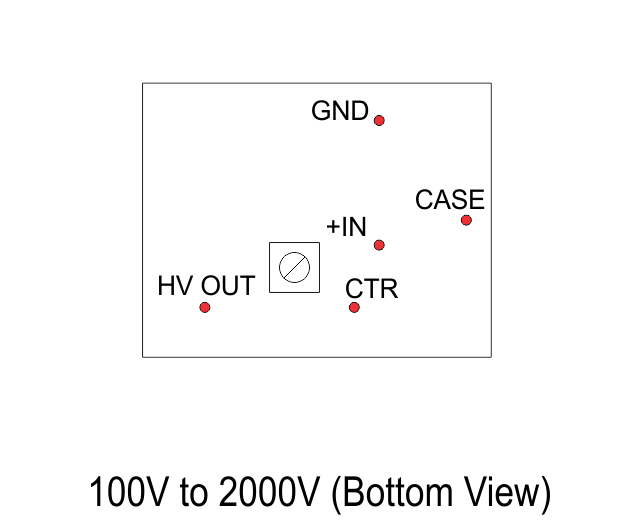

Mechanical Drawings
PDF format
Download in DXF format
