F1 Series 1 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Fully Regulated Outputs to + or -2000Vdc
  • 0-100% Programable Outputs
  • High Stability (25ppm/Deg C)
  • Low Output Noise & EMI/RFI
  • Temperature Range (-55 to +70 Deg C)
  • External Calibration Adjustment
  • Continuous Short Circuit Protection

The F1 Series miniature regulated high voltage DC/DC converter offers a 100% programable high voltage output. Output voltage monitor and onboard precision reference are standard. All models will tolerate a short circuit indefinitely.


Temp. (Stability): 25ppm/Deg C
Temp. (Operating Case): -55 to +70 Deg C
Temp. (Storage): -55 to +95 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet UL 60950

* * For RoHS Compliant part, add suffix /Y


Input Ranges: 5Vdc, 12Vdc
Voltage Accuracy: 1%
Line Regulation: 0.01%
Load Regulation: 0.05%
Output Ripple: 0.001% P-P
Input Filter: Low ESR Cap
Efficiency: 50%
Short Circuit Protection: Continuous
Switching Frequency: 180k-250kHz
Isolation: None

Dimensions: 1.1 x 1.75 x 0.5 [INCHES]
Weight: 1.3 Oz
Case Material: Nickle Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
-2000.0 Vdc0.5 mA 4.8-5.3 Vdc40%1.0W
F15-N200
F15-N200/Y
-2000.0 Vdc0.5 mA 11.5-15.5 Vdc40%1.0W
F112-N200
F112-N200/Y
-1500.0 Vdc0.67 mA 4.8-5.3 Vdc40%1.0W
F15-N150
F15-N150/Y
-1500.0 Vdc0.67 mA 11.5-15.5 Vdc40%1.0W
F112-N150
F112-N150/Y
-1250.0 Vdc0.8 mA 4.8-5.3 Vdc50%1.0W
F15-N125
F15-N125/Y
-1250.0 Vdc0.8 mA 11.5-15.5 Vdc40%1.0W
F112-N125
F112-N125/Y
-1000.0 Vdc1 mA 4.8-5.3 Vdc50%1.0W
F15-N100
F15-N100/Y
-1000.0 Vdc1 mA 11.5-15.5 Vdc40%1.0W
F112-N100
F112-N100/Y
-600.0 Vdc1.67 mA 4.8-5.3 Vdc50%1.0W
F15-N60
F15-N60/Y
-600.0 Vdc1.67 mA 11.5-15.5 Vdc40%1.0W
F112-N60
F112-N60/Y
-500.0 Vdc2 mA 4.8-5.3 Vdc50%1.0W
F15-N50
F15-N50/Y
-500.0 Vdc2 mA 11.5-15.5 Vdc40%1.0W
F112-N50
F112-N50/Y
-300.0 Vdc3.3 mA 4.8-5.3 Vdc50%1.0W
F15-N30
F15-N30/Y
-300.0 Vdc3.3 mA 11.5-15.5 Vdc40%1.0W
F112-N30
F112-N30/Y
-200.0 Vdc5 mA 4.8-5.3 Vdc50%1.0W
F15-N20
F15-N20/Y
-200.0 Vdc5 mA 11.5-15.5 Vdc40%1.0W
F112-N20
F112-N20/Y
-100.0 Vdc10 mA 4.8-5.3 Vdc50%1.0W
F15-N10
F15-N10/Y
-100.0 Vdc10 mA 11.5-15.5 Vdc40%1.0W
F112-N10
F112-N10/Y
100.0 Vdc10 mA 4.8-5.3 Vdc50%1.0W
F15-P10
F15-P10/Y
100.0 Vdc10 mA 11.5-15.5 Vdc40%1.0W
F112-P10
F112-P10/Y
200.0 Vdc5 mA 4.8-5.3 Vdc50%1.0W
F15-P20
F15-P20/Y
200.0 Vdc5 mA 11.5-15.5 Vdc40%1.0W
F112-P20
F112-P20/Y
300.0 Vdc3.3 mA 4.8-5.3 Vdc50%1.0W
F15-P30
F15-P30/Y
300.0 Vdc3.3 mA 11.5-15.5 Vdc40%1.0W
F112-P30
F112-P30/Y
500.0 Vdc2 mA 4.8-5.3 Vdc50%1.0W
F15-P50
F15-P50/Y
500.0 Vdc2 mA 11.5-15.5 Vdc40%1.0W
F112-P50
F112-P50/Y
600.0 Vdc1.67 mA 4.8-5.3 Vdc50%1.0W
F15-P60
F15-P60/Y
600.0 Vdc1.67 mA 11.5-15.5 Vdc40%1.0W
F112-P60
F112-P60/Y
1000.0 Vdc1 mA 4.8-5.3 Vdc50%1.0W
F15-P100
F15-P100/Y
1000.0 Vdc1 mA 11.5-15.5 Vdc40%1.0W
F112-P100
F112-P100/Y
1250.0 Vdc0.8 mA 4.8-5.3 Vdc50%1.0W
F15-P125
F15-P125/Y
1250.0 Vdc0.8 mA 11.5-15.5 Vdc40%1.0W
F112-P125
F112-P125/Y
1500.0 Vdc0.67 mA 4.8-5.3 Vdc40%1.0W
F15-P150
F15-P150/Y
1500.0 Vdc0.67 mA 11.5-15.5 Vdc40%1.0W
F112-P150
F112-P150/Y
2000.0 Vdc0.5 mA 4.8-5.3 Vdc40%1.0W
F15-P200
F15-P200/Y
2000.0 Vdc0.5 mA 11.5-15.5 Vdc40%1.0W
F112-P200
F112-P200/Y



Full Product Specification
PDF format

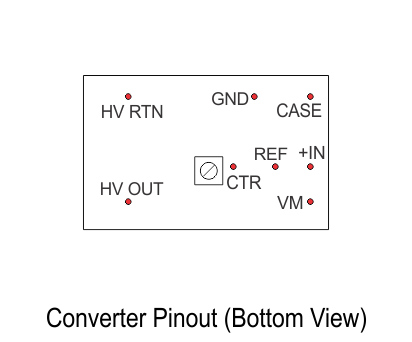

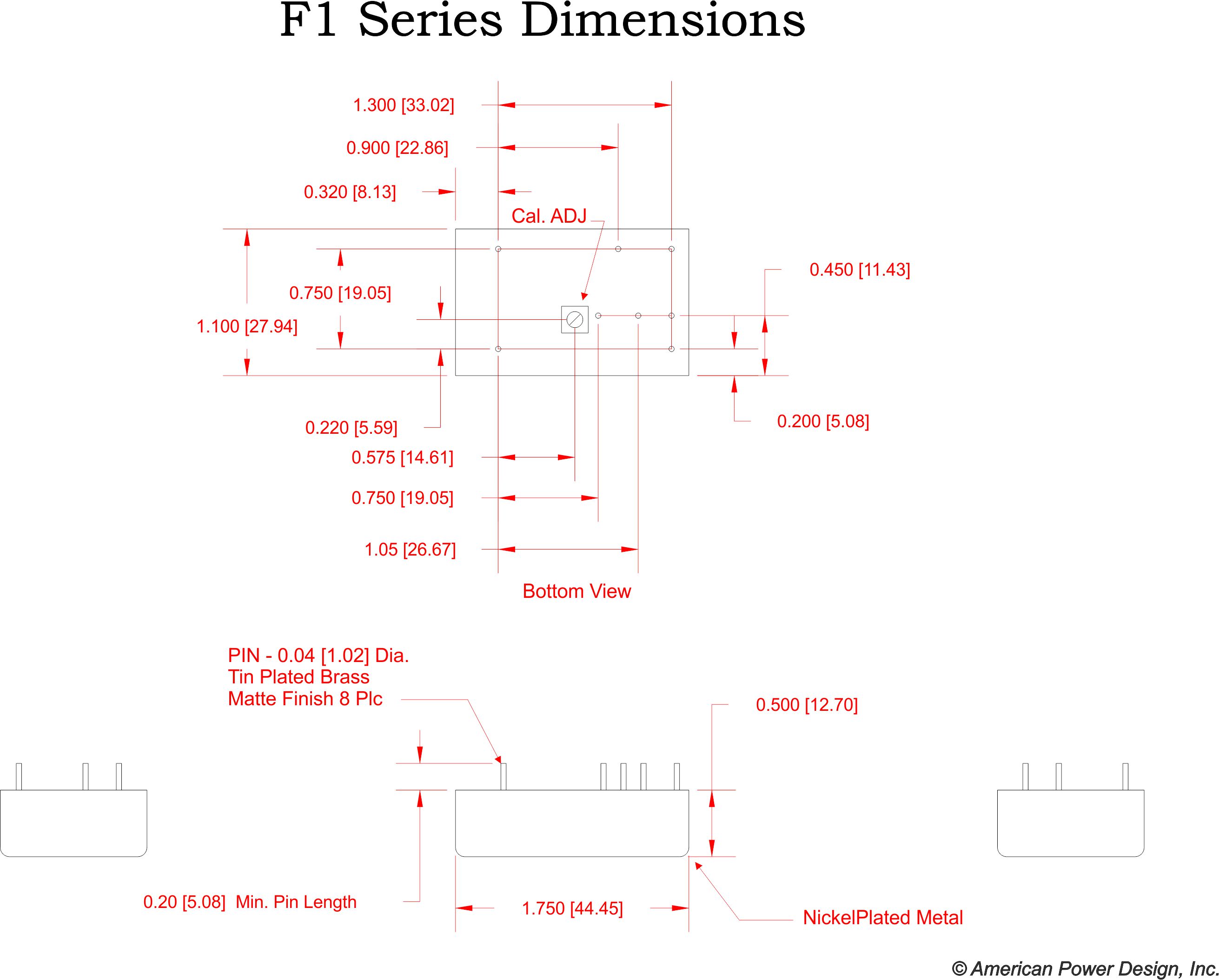

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
