M30 Series 30 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • Fully Programable Outputs
  • Single and Dual Outputs
  • Wide Input Range
  • 1.5 kVdc Output Isolation
  • Continuous Short Circuit Protection

The M30 Series high voltage DC/DC converter offers 100% programmable single or dual high voltage outputs using a 0-5Vdc analog signal. Each model is enclosed in a 2.6 x 3 x 0.84 [INCHES] six-sided shielded metal case and has 1.5 kVdc of isolation allowing one model to be utilized for both positive or negative applications. All models will tolerate a short circuit indefinitely.


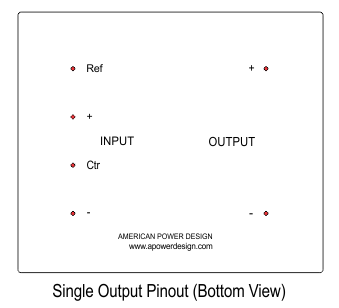

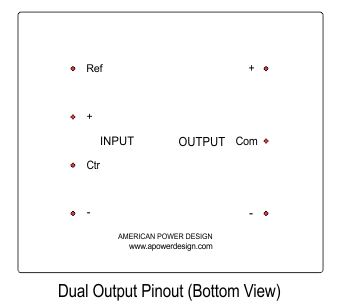

Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +70 Deg C
Temp. (Storage): -40 to +125 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet UL 60950

* * For RoHS Compliant part, add suffix /Y


Input Ranges: 10-20Vdc, 18-36Vdc
Voltage Accuracy: 3% / 3%
Line Regulation: 2%
Load Regulation: 4% (20% - FL)
Output Ripple: 0.4%
Input Filter: Pi Network
Efficiency: 87%
Short Circuit Protection: Continuous
Switching Frequency: 130 kHz
Isolation: 1.5 kVdc

Dimensions: 2.6 x 3 x 0.84 [INCHES]
Weight: 8.4 Oz
Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
48.0 Vdc
48.0 Vdc
312 mA
312 mA
10.0-20.0 Vdc85%30.0W
M30-D48
M30-D48/Y
48.0 Vdc
48.0 Vdc
312 mA
312 mA
18.0-36.0 Vdc85%30.0W
M30-D48/A
M30-D48/A/Y
48.0 Vdc625 mA 10.0-20.0 Vdc85%30.0W
M30-S48
M30-S48/Y
48.0 Vdc625 mA 18.0-36.0 Vdc85%30.0W
M30-S48/A
M30-S48/A/Y
100.0 Vdc
100.0 Vdc
150 mA
150 mA
10.0-20.0 Vdc85%30.0W
M30-D100
M30-D100/Y
100.0 Vdc
100.0 Vdc
150 mA
150 mA
18.0-36.0 Vdc85%30.0W
M30-D100/A
M30-D100/A/Y
100.0 Vdc300 mA 10.0-20.0 Vdc85%30.0W
M30-S100
M30-S100/Y
100.0 Vdc300 mA 18.0-36.0 Vdc85%30.0W
M30-S100/A
M30-S100/A/Y
125.0 Vdc240 mA 18.0-36.0 Vdc85%30.0W
M30-S125/A
M30-S125/A/Y
150.0 Vdc
150.0 Vdc
100 mA
100 mA
10.0-20.0 Vdc85%30.0W
M30-D150
M30-D150/Y
150.0 Vdc
150.0 Vdc
100 mA
100 mA
18.0-36.0 Vdc85%30.0W
M30-D150/A
M30-D150/A/Y
150.0 Vdc200 mA 10.0-20.0 Vdc85%30.0W
M30-S150
M30-S150/Y
150.0 Vdc200 mA 18.0-36.0 Vdc85%30.0W
M30-S150/A
M30-S150/A/Y
200.0 Vdc
200.0 Vdc
75 mA
75 mA
10.0-20.0 Vdc85%30.0W
M30-D200
M30-D200/Y
200.0 Vdc
200.0 Vdc
75 mA
75 mA
18.0-36.0 Vdc85%30.0W
M30-D200/A
M30-D200/A/Y
200.0 Vdc150 mA 10.0-20.0 Vdc85%30.0W
M30-S200
M30-S200/Y
200.0 Vdc150 mA 18.0-36.0 Vdc85%30.0W
M30-S200/A
M30-S200/A/Y
215.0 Vdc139.5 mA 18.0-36.0 Vdc85%30.0W
M30-S215/A
M30-S215/A/Y
300.0 Vdc
300.0 Vdc
50 mA
50 mA
10.0-20.0 Vdc85%30.0W
M30-D300
M30-D300/Y
300.0 Vdc
300.0 Vdc
50 mA
50 mA
18.0-36.0 Vdc87%30.0W
M30-D300/A
M30-D300/A/Y
300.0 Vdc100 mA 10.0-20.0 Vdc88%30.0W
M30-S300
M30-S300/Y
300.0 Vdc100 mA 18.0-36.0 Vdc85%30.0W
M30-S300/A
M30-S300/A/Y
400.0 Vdc75 mA 18.0-36.0 Vdc87%30.0W
M30-400/A
M30-400/A/Y
400.0 Vdc
400.0 Vdc
37 mA
37 mA
10.0-20.0 Vdc85%30.0W
M30-D400
M30-D400/Y
400.0 Vdc
400.0 Vdc
37 mA
37 mA
18.0-36.0 Vdc85%30.0W
M30-D400/A
M30-D400/A/Y
400.0 Vdc75 mA 10.0-20.0 Vdc85%30.0W
M30-S400
M30-S400/Y
400.0 Vdc75 mA 18.0-36.0 Vdc85%30.0W
M30-S400/A
M30-S400/A/Y
500.0 Vdc
500.0 Vdc
30 mA
30 mA
10.0-20.0 Vdc87%30.0W
M30-D500
M30-D500/Y
500.0 Vdc
500.0 Vdc
30 mA
30 mA
18.0-36.0 Vdc85%30.0W
M30-D500/A
M30-D500/A/Y
500.0 Vdc60 mA 10.0-20.0 Vdc85%30.0W
M30-S500
M30-S500/Y
500.0 Vdc60 mA 18.0-36.0 Vdc87%30.0W
M30-S500/A
M30-S500/A/Y
550.0 Vdc
550.0 Vdc
27.2 mA
27.2 mA
18.0-36.0 Vdc87%30.0W
M30-D550/A
M30-D550/A/Y
600.0 Vdc50 mA 10.0-20.0 Vdc85%30.0W
M30-S600
M30-S600/Y
600.0 Vdc50 mA 18.0-36.0 Vdc85%30.0W
M30-S600/A
M30-S600/A/Y
800.0 Vdc37 mA 10.0-20.0 Vdc88%30.0W
M30-S800
M30-S800/Y
800.0 Vdc37.5 mA 18.0-36.0 Vdc87%30.0W
M30-S800/A
M30-S800/A/Y
900.0 Vdc33 mA 10.0-20.0 Vdc85%30.0W
M30-S900
M30-S900/Y
900.0 Vdc33 mA 18.0-36.0 Vdc85%30.0W
M30-S900/A
M30-S900/A/Y
1000.0 Vdc30 mA 10.0-20.0 Vdc87%30.0W
M30-S1000
M30-S1000/Y
1000.0 Vdc30 mA 18.0-36.0 Vdc87%30.0W
M30-S1000/A
M30-S1000/A/Y
1100.0 Vdc27.2 mA 18.0-36.0 Vdc87%30.0W
M30-S1100/A
M30-S1100/A/Y
