M5 Series 5 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • Fully Programable Outputs
  • Single and Dual Outputs
  • Wide Input Range
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection

The M5 Series high voltage DC/DC converter offers 100% programmable single or dual high voltage outputs using a 0-5Vdc analog signal. Each model is enclosed in a 1 x 2 x 0.41 [INCHES] six-sided shielded metal case and has 1 kVdc of isolation allowing one model to be utilized for both positive or negative applications. All models will tolerate a short circuit indefinitely.


Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +70 Deg C
Temp. (Storage): -40 to +125 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet UL 60950

* * For RoHS Compliant part, add suffix /Y


Input Ranges: 10-20Vdc, 18-36Vdc
Voltage Accuracy: 3% / 3%
Line Regulation: 2%
Load Regulation: 3% (20% - FL)
Output Ripple: 0.3%
Input Filter: Low ESR Cap
Efficiency: 82%
Short Circuit Protection: Continuous
Switching Frequency: 130 kHz
Isolation: 1 kVdc

Dimensions: 1 x 2 x 0.41 [INCHES]
Weight: 1.2 Oz
Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
15.0 Vdc
15.0 Vdc
166 mA
166 mA
18.0-36.0 Vdc78%5.0W
M5-D15/A
M5-D15/A/Y
24.0 Vdc
24.0 Vdc
104 mA
104 mA
10.0-20.0 Vdc86%5.0W
M5-D24
M5-D24/Y
24.0 Vdc
24.0 Vdc
104 mA
104 mA
18.0-24.0 Vdc86%5.0W
M5-D24/A
M5-D24/A/Y
24.0 Vdc208.3 mA 10.0-20.0 Vdc86%5.0W
M5-S24
M5-S24/Y
24.0 Vdc208 mA 18.0-36.0 Vdc86%5.0W
M5-S24/A
M5-S24/A/Y
48.0 Vdc
48.0 Vdc
52 mA
52 mA
10.0-20.0 Vdc86%5.0W
M5-D48
M5-D48/Y
48.0 Vdc
48.0 Vdc
52 mA
52 mA
18.0-24.0 Vdc86%5.0W
M5-D48/A
M5-D48/A/Y
48.0 Vdc104 mA 10.0-20.0 Vdc86%5.0W
M5-S48
M5-S48/Y
48.0 Vdc104 mA 18.0-36.0 Vdc0%5.0W
M5-S48/A
M5-S48/A/Y
63.0 Vdc79.3 mA 18.0-36.0 Vdc82%5.0W
M5-S63/A
M5-S63/A/Y
70.0 Vdc71.4 mA 18.0-36.0 Vdc78%5.0W
M5-S70/A
M5-S70/A/Y
75.0 Vdc66.7 mA 10.0-20.0 Vdc78%5.0W
M5-S75
M5-S75/Y
100.0 Vdc
100.0 Vdc
25 mA
25 mA
10.0-20.0 Vdc78%5.0W
M5-D100
M5-D100/Y
100.0 Vdc
100.0 Vdc
25 mA
25 mA
18.0-36.0 Vdc76%5.0W
M5-D100/A
M5-D100/A/Y
100.0 Vdc50 mA 10.0-20.0 Vdc86%5.0W
M5-S100
M5-S100/Y
100.0 Vdc50 mA 18.0-36.0 Vdc82%5.0W
M5-S100/A
M5-S100/A/Y
125.0 Vdc40 mA 18.0-36.0 Vdc82%5.0W
M5-S125/A
M5-S125/A/Y
200.0 Vdc
200.0 Vdc
12 mA
12 mA
10.0-20.0 Vdc85%5.0W
M5-D200
M5-D200/Y
200.0 Vdc
200.0 Vdc
12 mA
12 mA
18.0-36.0 Vdc78%5.0W
M5-D200/A
M5-D200/A/Y
200.0 Vdc25 mA 10.0-20.0 Vdc78%5.0W
M5-S200
M5-S200/Y
200.0 Vdc25 mA 18.0-36.0 Vdc78%5.0W
M5-S200/A
M5-S200/A/Y
300.0 Vdc
300.0 Vdc
8 mA
8 mA
10.0-20.0 Vdc78%5.0W
M5-D300
M5-D300/Y
300.0 Vdc
300.0 Vdc
8 mA
8 mA
18.0-36.0 Vdc78%5.0W
M5-D300/A
M5-D300/A/Y
300.0 Vdc16 mA 10.0-20.0 Vdc85%5.0W
M5-S300
M5-S300/Y
300.0 Vdc16 mA 18.0-36.0 Vdc80%5.0W
M5-S300/A
M5-S300/A/Y
400.0 Vdc
400.0 Vdc
6 mA
6 mA
10.0-20.0 Vdc80%5.0W
M5-D400
M5-D400/Y
400.0 Vdc
400.0 Vdc
6 mA
6 mA
18.0-36.0 Vdc78%5.0W
M5-D400/A
M5-D400/A/Y
400.0 Vdc12 mA 10.0-20.0 Vdc84%5.0W
M5-S400
M5-S400/Y
400.0 Vdc12 mA 18.0-36.0 Vdc78%5.0W
M5-S400/A
M5-S400/A/Y
500.0 Vdc
500.0 Vdc
5 mA
5 mA
10.0-20.0 Vdc78%5.0W
M5-D500
M5-D500/Y
500.0 Vdc
500.0 Vdc
5 mA
5 mA
18.0-36.0 Vdc78%5.0W
M5-D500/A
M5-D500/A/Y
500.0 Vdc10 mA 10.0-20.0 Vdc78%5.0W
M5-S500
M5-S500/Y
500.0 Vdc
500.0 Vdc
10 mA
10 mA
18.0-36.0 Vdc78%10.0W
M5-S500/A
M5-S500/A/Y
600.0 Vdc8 mA 10.0-20.0 Vdc78%5.0W
M5-S600
M5-S600/Y
600.0 Vdc8 mA 18.0-36.0 Vdc78%5.0W
M5-S600/A
M5-S600/A/Y
800.0 Vdc6 mA 10.0-20.0 Vdc78%5.0W
M5-S800
M5-S800/Y
800.0 Vdc6 mA 18.0-36.0 Vdc78%5.0W
M5-S800/A
M5-S800/A/Y
900.0 Vdc5 mA 10.0-20.0 Vdc78%5.0W
M5-S900
M5-S900/Y
900.0 Vdc5 mA 18.0-36.0 Vdc78%5.0W
M5-S900/A
M5-S900/A/Y
1000.0 Vdc5 mA 10.0-20.0 Vdc78%5.0W
M5-S1000
M5-S1000/Y
1000.0 Vdc5 mA 18.0-36.0 Vdc76%5.0W
M5-S1000/A
M5-S1000/A/Y



Full Product Specification
PDF format

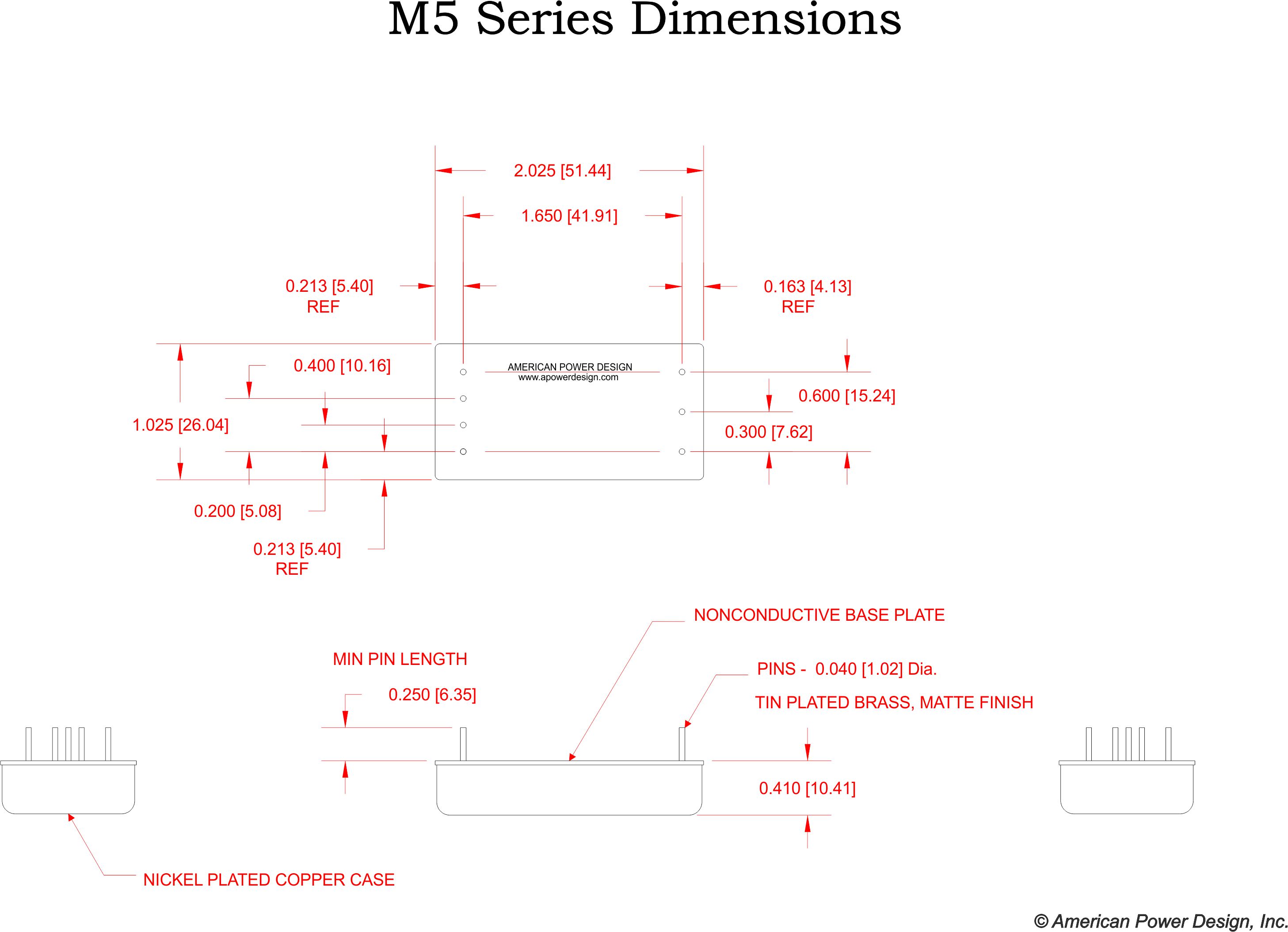

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
