Q2 Series 2 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Regulated Outputs to + or -5000Vdc
  • 0-100% Programable Outputs
  • Output Voltage Monitor
  • High Regulation <0.001%
  • Ultra Low Output Noise & EMI/RFI
  • Continuous Short Circuit Protection
  • On Board Precision Reference

The Q2 Series high voltage DC/DC converter offers a 2W 100% programable high voltage output using a 0 to 9Vdc analog signal. Their exceptionally low noise, regulation, and stability make them ideally suited for applications including: Photomultiplier tubes, MASS Spectrometers, Radiation Counters and Ultrasonic Transducers.


Temp. (Stability): 0.005%/Deg C
Temp. (Operating Case): 0 to +50 Deg C
Temp. (Storage): -40 to +85 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet UL 60950

* * For RoHS Compliant part, add suffix /Y


Input Ranges: 24V-30Vdc
Voltage Accuracy: 1%
Line Regulation: 0.001%
Load Regulation: 0.001%
Output Ripple: 0.0001%
Input Filter: Low ESR Cap
Efficiency: 50%%
Short Circuit Protection: Continuous
Switching Frequency: 150k-250kHz
Isolation: None

Dimensions: 5.12 x 2.9 x 1.0 [INCHES]
Weight: 4.8 Oz
Case Material: Coated Aluminum
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
-5000.0 Vdc0.4 mA 24.0-30.0 Vdc50%2.0W
Q2-N500
Q2-N500/Y
-3000.0 Vdc0.65 mA 24.0-30.0 Vdc50%2.0W
Q2-N300
Q2-N300/Y
-2000.0 Vdc1 mA 24.0-30.0 Vdc50%2.0W
Q2-N200
Q2-N200/Y
-1500.0 Vdc1.3 mA 24.0-30.0 Vdc50%2.0W
Q2-N150
Q2-N150/Y
-1000.0 Vdc2 mA 24.0-30.0 Vdc50%2.0W
Q2-N100
Q2-N100/Y
-500.0 Vdc4 mA 24.0-30.0 Vdc50%2.0W
Q2-N50
Q2-N50/Y
500.0 Vdc4 mA 24.0-30.0 Vdc50%2.0W
Q2-P50
Q2-P50/Y
1000.0 Vdc2 mA 24.0-30.0 Vdc50%2.0W
Q2-P100
Q2-P100/Y
1500.0 Vdc1.3 mA 24.0-30.0 Vdc50%2.0W
Q2-P150
Q2-P150/Y
2000.0 Vdc1 mA 24.0-30.0 Vdc50%2.0W
Q2-P200
Q2-P200/Y
3000.0 Vdc0.65 mA 24.0-30.0 Vdc50%2.0W
Q2-P300
Q2-P300/Y
5000.0 Vdc0.4 mA 24.0-30.0 Vdc50%2.0W
Q2-P500
Q2-P500/Y



Full Product Specification
PDF format

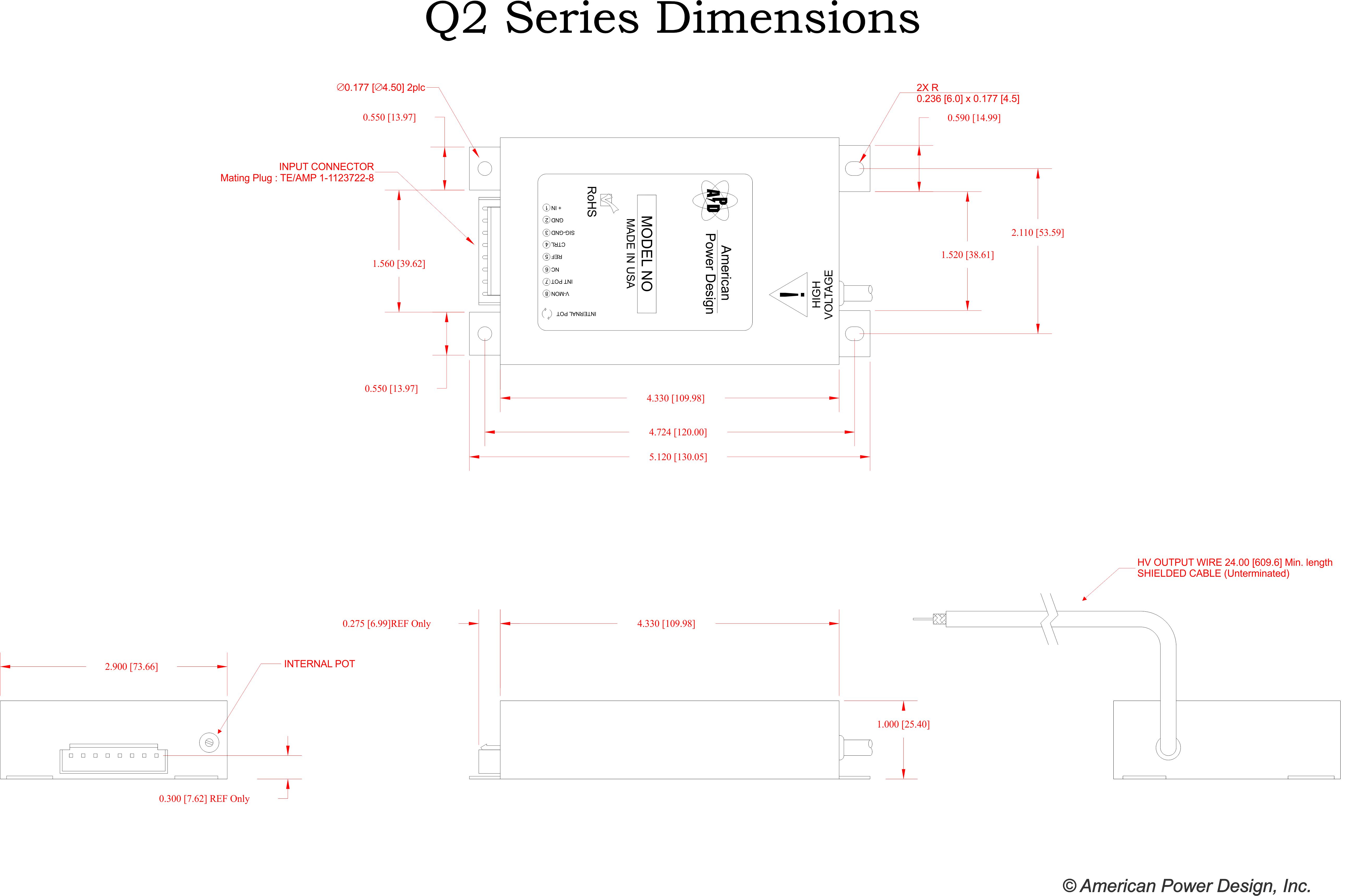

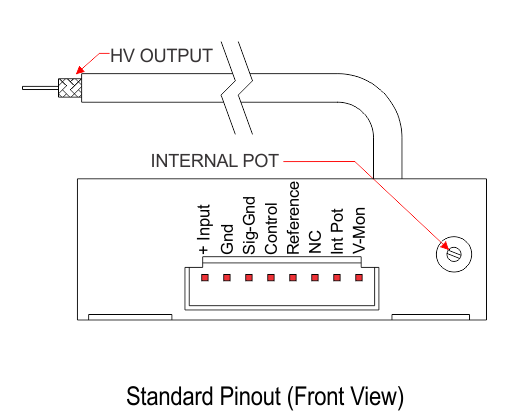

Mechanical Drawings
PDF format
Download in DXF format

Related Documents
Measurement Techniques
Common Mode Noise
