S30 Series 30 Watt

High Voltage DC/DC Converters

Features
  • Customer Selects Output Voltage
  • Outputs to 1000Vdc
  • High Power Density
  • Single and Dual Outputs
  • Ultra Wide Input Range
  • 1 kVdc Output Isolation
  • Continuous Short Circuit Protection

The S30 Series low profile high voltage DC/DC converter offers a 1 kVdc isolated single or dual high voltage output in a 2 x 2 x 0.5 [INCHES] case. Their small size, wide input, and excellent regulation make them ideally suited for applications that demand a high degree of performance. All models will tolerate a short circuit indefinitely.


Temp. (Stability): 0.02%/Deg C
Temp. (Operating Case): -25 to +70 Deg C
Temp. (Storage): -40 to +125 Deg C
EMI/RFI: Six Sided Shield
Derating: None
Cooling: Free-Air Convection

* All models designed to meet UL 60950

* * For RoHS Compliant part, add suffix /Y


Input Ranges: 9-36Vdc, 20-60Vdc, 36-72Vdc
Voltage Accuracy: 5% / 5%
Line Regulation: 1%
Load Regulation: 3% (20% - FL)
Output Ripple: 0.5%
Input Filter: Low ESR Cap
Efficiency: 85%
Short Circuit Protection: Continuous
Switching Frequency: 120 kHz
Isolation: 1 kVdc

Dimensions: 2 x 2 x 0.5 [INCHES]
Weight: 2.6 Oz
Case Material: Nickel Plated Metal
Models Currently In Production

Output VoltageCurrentInput VoltageEfficiencyPowerModel Number
24.0 Vdc
24.0 Vdc
625 mA
625 mA
9.0-36.0 Vdc85%30.0W
S30-D24
S30-D24/Y
24.0 Vdc
24.0 Vdc
625 mA
625 mA
20.0-60.0 Vdc85%30.0W
S30-D24/B
S30-D24/B/Y
24.0 Vdc
24.0 Vdc
625 mA
625 mA
36.0-72.0 Vdc85%30.0W
S30-D24/C
S30-D24/C/Y
24.0 Vdc1.2 A 9.0-36.0 Vdc85%29.0W
S30-S24
S30-S24/Y
24.0 Vdc1.2 A 20.0-60.0 Vdc85%29.0W
S30-S24/B
S30-S24/B/Y
24.0 Vdc1.2 A 36.0-72.0 Vdc85%29.0W
S30-S24/C
S30-S24/C/Y
48.0 Vdc
48.0 Vdc
312 mA
312 mA
9.0-36.0 Vdc85%30.0W
S30-D48
S30-D48/Y
48.0 Vdc
48.0 Vdc
312 mA
312 mA
20.0-60.0 Vdc85%30.0W
S30-D48/B
S30-D48/B/Y
48.0 Vdc
48.0 Vdc
312 mA
312 mA
36.0-72.0 Vdc85%30.0W
S30-D48/C
S30-D48/C/Y
48.0 Vdc625 mA 9.0-36.0 Vdc85%30.0W
S30-S48
S30-S48/Y
48.0 Vdc625 mA 20.0-60.0 Vdc85%30.0W
S30-S48/B
S30-S48/B/Y
48.0 Vdc625 mA 36.0-72.0 Vdc85%30.0W
S30-S48/C
S30-S48/C/Y
90.0 Vdc
90.0 Vdc
166.6 mA
166.6 mA
9.0-36.0 Vdc85%30.0W
S30-D90
S30-D90/Y
100.0 Vdc
100.0 Vdc
150 mA
150 mA
9.0-36.0 Vdc85%30.0W
S30-D100
S30-D100/Y
100.0 Vdc
100.0 Vdc
150 mA
150 mA
20.0-60.0 Vdc85%30.0W
S30-D100/B
S30-D100/B/Y
100.0 Vdc
100.0 Vdc
150 mA
150 mA
36.0-72.0 Vdc85%30.0W
S30-D100/C
S30-D100/C/Y
100.0 Vdc300 mA 9.0-36.0 Vdc89%30.0W
S30-S100
S30-S100/Y
100.0 Vdc300 mA 20.0-60.0 Vdc85%30.0W
S30-S100/B
S30-S100/B/Y
100.0 Vdc300 mA 36.0-72.0 Vdc85%30.0W
S30-S100/C
S30-S100/C/Y
150.0 Vdc
150.0 Vdc
100 mA
100 mA
9.0-36.0 Vdc85%30.0W
S30-D150
S30-D150/Y
150.0 Vdc
150.0 Vdc
100 mA
100 mA
20.0-60.0 Vdc85%30.0W
S30-D150/B
S30-D150/B/Y
150.0 Vdc
150.0 Vdc
100 mA
100 mA
36.0-72.0 Vdc85%30.0W
S30-D150/C
S30-D150/C/Y
150.0 Vdc200 mA 9.0-36.0 Vdc85%30.0W
S30-S150
S30-S150/Y
150.0 Vdc200 mA 20.0-60.0 Vdc85%30.0W
S30-S150/B
S30-S150/B/Y
150.0 Vdc200 mA 36.0-72.0 Vdc85%30.0W
S30-S150/C
S30-S150/C/Y
165.0 Vdc
165.0 Vdc
90.9 mA
90.9 mA
9.0-36.0 Vdc85%30.0W
S30-D165
S30-D165/Y
165.0 Vdc
165.0 Vdc
90.9 mA
90.9 mA
20.0-60.0 Vdc85%30.0W
S30-D165/B
S30-D165/B/Y
200.0 Vdc
200.0 Vdc
75 mA
75 mA
9.0-36.0 Vdc89%30.0W
S30-D200
S30-D200/Y
200.0 Vdc
200.0 Vdc
75 mA
75 mA
20.0-60.0 Vdc85%30.0W
S30-D200/B
S30-D200/B/Y
200.0 Vdc
200.0 Vdc
75 mA
75 mA
36.0-72.0 Vdc85%30.0W
S30-D200/C
S30-D200/C/Y
200.0 Vdc150 mA 9.0-36.0 Vdc85%30.0W
S30-S200
S30-S200/Y
200.0 Vdc150 mA 20.0-60.0 Vdc85%30.0W
S30-S200/B
S30-S200/B/Y
200.0 Vdc150 mA 36.0-72.0 Vdc85%30.0W
S30-S200/C
S30-S200/C/Y
210.0 Vdc143 mA 9.0-36.0 Vdc85%30.0W
S30-S210
S30-S210/Y
220.0 Vdc
220.0 Vdc
68.2 mA
68.2 mA
9.0-36.0 Vdc85%30.0W
S30-D220
S30-D220/Y
300.0 Vdc
300.0 Vdc
50 mA
50 mA
9.0-36.0 Vdc85%30.0W
S30-D300
S30-D300/Y
300.0 Vdc
300.0 Vdc
50 mA
50 mA
20.0-60.0 Vdc85%30.0W
S30-D300/B
S30-D300/B/Y
300.0 Vdc
300.0 Vdc
50 mA
50 mA
36.0-72.0 Vdc85%30.0W
S30-D300/C
S30-D300/C/Y
300.0 Vdc100 mA 9.0-36.0 Vdc85%30.0W
S30-S300
S30-S300/Y
300.0 Vdc100 mA 20.0-60.0 Vdc85%30.0W
S30-S300/B
S30-S300/B/Y
300.0 Vdc100 mA 36.0-72.0 Vdc85%30.0W
S30-S300/C
S30-S300/C/Y
320.0 Vdc
320.0 Vdc
46.9 mA
46.9 mA
9.0-36.0 Vdc85%30.0W
S30-D320
S30-D320/Y
400.0 Vdc
400.0 Vdc
37 mA
37 mA
9.0-36.0 Vdc85%30.0W
S30-D400
S30-D400/Y
400.0 Vdc
400.0 Vdc
37 mA
37 mA
20.0-60.0 Vdc85%30.0W
S30-D400/B
S30-D400/B/Y
400.0 Vdc
400.0 Vdc
37 mA
37 mA
36.0-72.0 Vdc85%30.0W
S30-D400/C
S30-D400/C/Y
400.0 Vdc75 mA 9.0-36.0 Vdc85%30.0W
S30-S400
S30-S400/Y
400.0 Vdc75 mA 20.0-60.0 Vdc90%30.0W
S30-S400/B
S30-S400/B/Y
400.0 Vdc75 mA 36.0-72.0 Vdc85%30.0W
S30-S400/C
S30-S400/C/Y
450.0 Vdc66.7 mA 9.0-36.0 Vdc85%30.0W
S30-S450
S30-S450/Y
500.0 Vdc
500.0 Vdc
30 mA
30 mA
9.0-36.0 Vdc85%30.0W
S30-D500
S30-D500/Y
500.0 Vdc
500.0 Vdc
30 mA
30 mA
20.0-60.0 Vdc85%30.0W
S30-D500/B
S30-D500/B/Y
500.0 Vdc
500.0 Vdc
30 mA
30 mA
36.0-72.0 Vdc85%30.0W
S30-D500/C
S30-D500/C/Y
500.0 Vdc60 mA 9.0-36.0 Vdc85%30.0W
S30-S500
S30-S500/Y
500.0 Vdc60 mA 20.0-60.0 Vdc85%30.0W
S30-S500/B
S30-S500/B/Y
500.0 Vdc60 mA 36.0-72.0 Vdc85%30.0W
S30-S500/C
S30-S500/C/Y
600.0 Vdc50 mA 9.0-36.0 Vdc85%30.0W
S30-S600
S30-S600/Y
600.0 Vdc50 mA 20.0-60.0 Vdc85%30.0W
S30-S600/B
S30-S600/B/Y
600.0 Vdc50 mA 36.0-72.0 Vdc85%30.0W
S30-S600/C
S30-S600/C/Y
750.0 Vdc40 mA 9.0-36.0 Vdc85%30.0W
S30-S750
S30-S750/Y
800.0 Vdc37 mA 9.0-36.0 Vdc85%30.0W
S30-S800
S30-S800/Y
800.0 Vdc37 mA 20.0-60.0 Vdc85%30.0W
S30-S800/B
S30-S800/B/Y
800.0 Vdc37 mA 36.0-72.0 Vdc85%30.0W
S30-S800/C
S30-S800/C/Y
1000.0 Vdc30 mA 9.0-36.0 Vdc85%30.0W
S30-S1000
S30-S1000/Y
1000.0 Vdc30 mA 20.0-60.0 Vdc85%30.0W
S30-S1000/B
S30-S1000/B/Y
1000.0 Vdc30 mA 36.0-72.0 Vdc85%30.0W
S30-S1000/C
S30-S1000/C/Y



Full Product Specification
PDF format

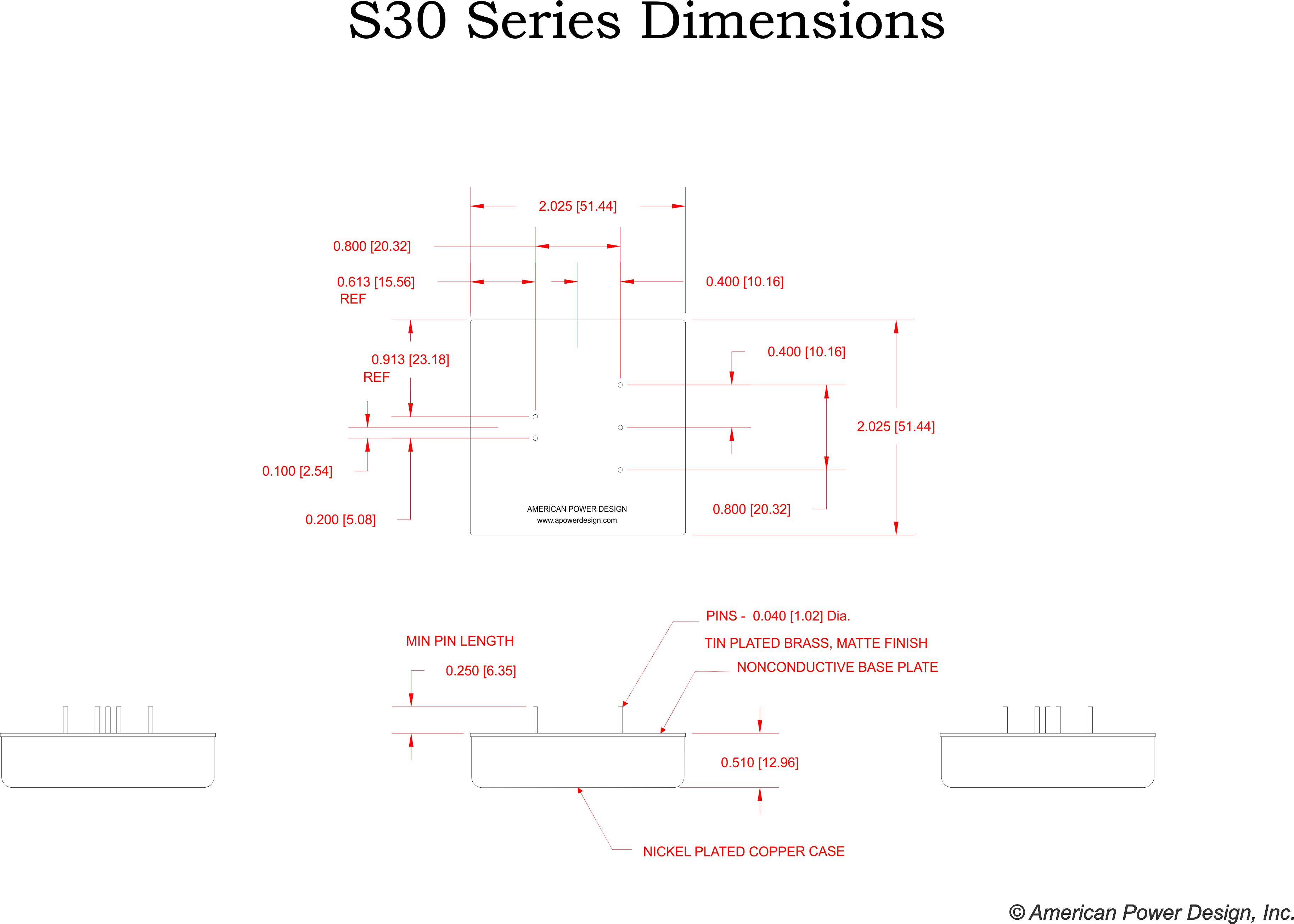

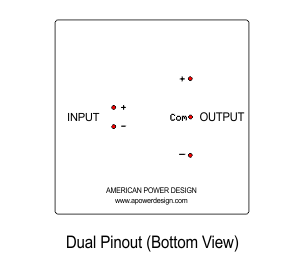

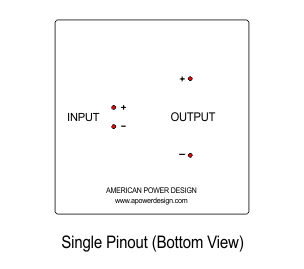

Mechanical Drawings
PDF format
Download in DXF format
